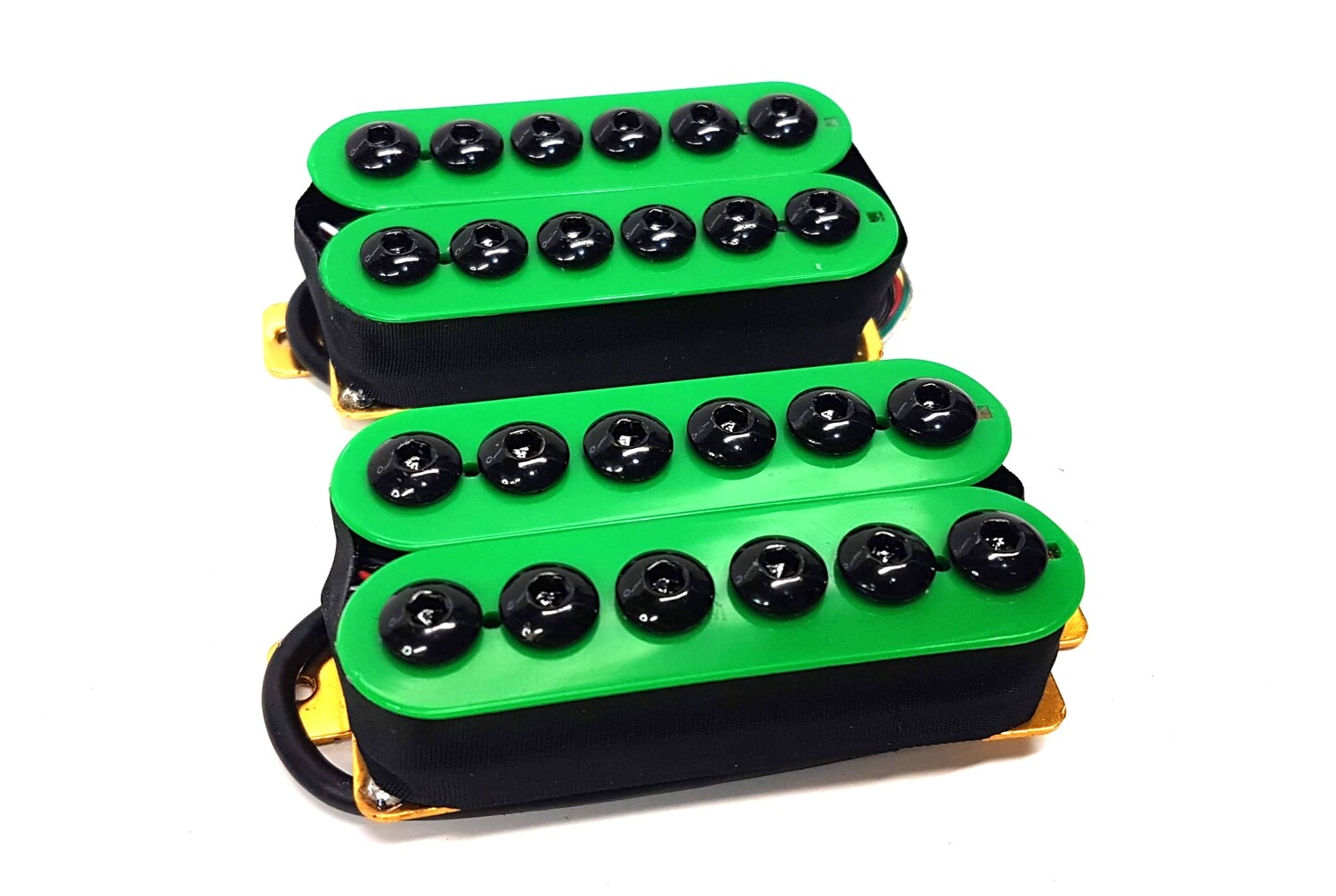

The Brio Hex-Buck Humbucker Pickups are a passive high out Bridge @14.8 ohms and 7.8 ohm Neck. They offer clarity when needed and some sweet cutting edge tone. They are made with performance in mind, delivering an intense performance response for the Rockers, Metal & Shredders and Classic rock too!
Each pickup features a Ceramic Magnet, and 12 oversize hex screw pole pieces. You can adjust 1 or all 12 of them to match your sound.
The ceramic magnets featured in these pickups provide crisp, clean, modern tone.
These humbuckers are 4-wire so you can coil-split for even more versatility. In single coil mode, this humbucker performs with clarity and functionality. For high-end performance, we recommend using 500K pots and 0.022 tone caps (available separately).
Product Description:*Ceramic Magnet Style*4 Conductor Wiring (4 Wire Pickups)*52/50 Spacing (Standard F-Spacing)*Vacuum Wax Potted for Squeal Reduction or Elimination*Bridge & Neck Position Use*Coil Split Capable (sometimes referred to as Coil Tap)*Short Style Mounting Legs (Standard Style)*12 Adjustable Hex Screw Exposed Polepieces (per pickup)*Uncovered Open Coil Bobbin Style*Standard Insulated Lead Wire (Stranded Style)
~~APPROXIMATE MEASUREMENTS~~*Bridge Pole piece Spacing: 52mm*Neck Pole piece Spacing: 50mm*Approximate Bridge Output: Wound to ~14.8K DCR (Resistance)*Approximate Neck Output: Wound to ~8.3K DCR (Resistance)*Pickup Length: 68mm (84mm including mounting flanges)*Pickup Width: 37mm*Pickup Depth: 22mm*Mounting Screw Spacing: 78mmMeasurements provided are approximations; variability is to be expected.
~~WHAT’S INCLUDED~~*Humbucker Pickup Set ( Bridge and Neck )*Pickup Mounting Screws (2 per pickup ordered)*Pickup Tension Mounting Springs (2 per pickup ordered)*BASIC Wire Color Codes
Basic wire color codes will let you know which wires are hot and which are grounds. Due to the vast and varied nature of possible set-ups, we do not provide specific information or diagrams for installation. You should be able to use the simple information we provide to match up with any diagram or instructions you choose to use. Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.
