THE 7MM MICRO KILL SWITCH
Type: Momentary Push Button Switch

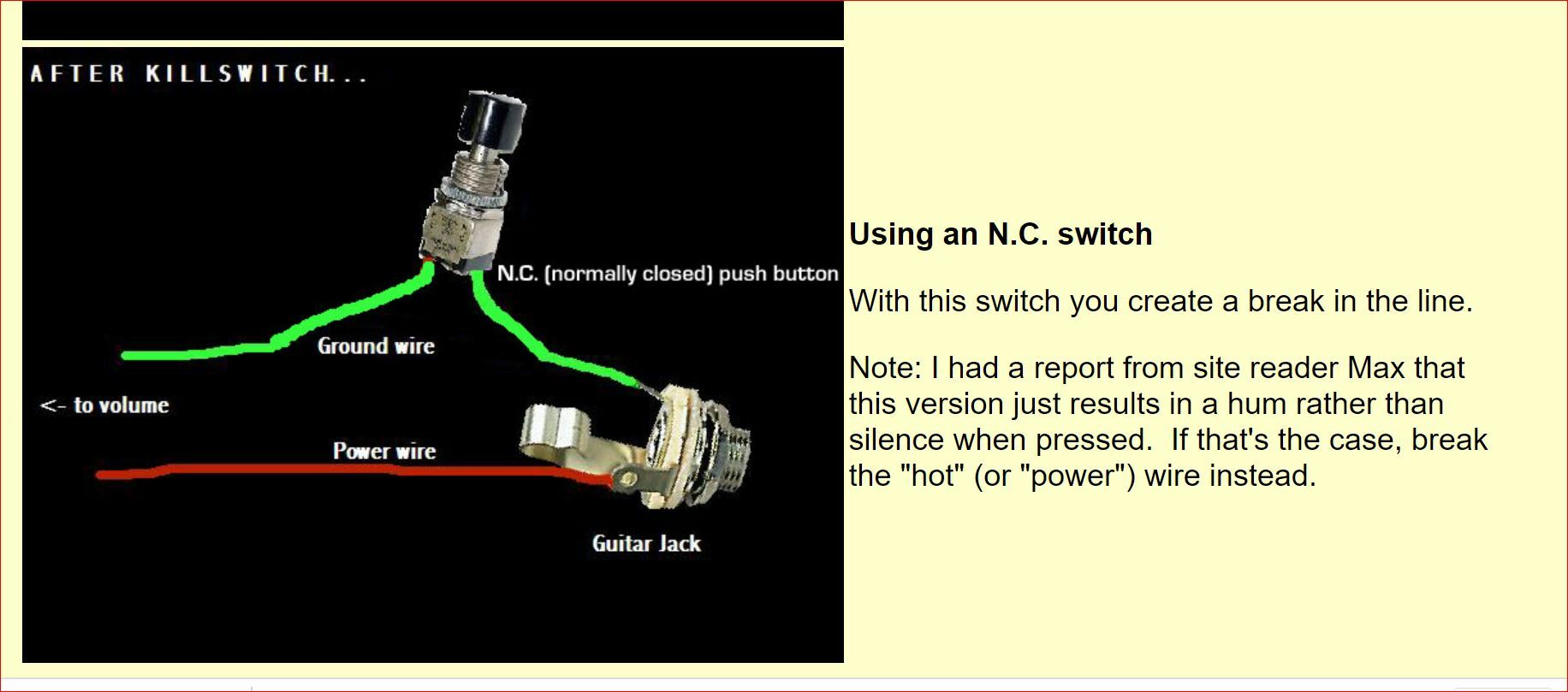

Operation Type: Normally Closed (Included instructions show you how to wire it properly!)
Housing Material: Steel and Plastic
Mounting Hole Size: 7mm
Mounting Panel Thickness: 1mm-3mm
Operation Pressure: about 3n
Operation Stroke: 2.0 mm
Contact Resistance: 50 mOhm
Mechanical Life: 12,000 cycles
Switch Rating: .5A/250VAC
What does all this mean? You're selecting an inexpensive kill switch option that will easily mount to your guitar.
The switch is easy to install. If you have the slightest bit of skill with a soldering iron you can do it yourself. If you do not have that skill, you should have a guitar repair person do it. Because of the small mounting diameter, this will not fit in a standard pot hole so you will have to make a new hole in your guitar or pickguard.
This package comes with everything:
(1) Brio MICRO 7mm Momentary Guitar Kill Switch
(1) Brio Quick-Connect wiring Bundle that includes:
(1) 6" Black ground wire (attached)
(1) 6" White hot wire (attached)
(1) Set of easy-to-follow wiring instructions (in the package)
This switch can be used with active or passive pickups with no additional parts required. Just solder the wires (already attached to the switch) and get ready for action!
Each Brio Guitar Kill Switch is guaranteed against defect for one year from the date of sale. Contact us for more details.
