PRO CNC Acrylic Routing Template Set – Floyd Rose Tremolo

Designed for builders who demand precision, this PRO CNC Acrylic Template Set is the ideal solution for routing Floyd Rose tremolo bridge cavities with accuracy, clarity, and confidence.

Product Features

• Precision-Fit for Floyd Rose:
  Accurately routes cavities for Floyd Rose tremolo bridges with a 74.61mm (2-15/16") stud spacing.
• Crystal-Clear Acrylic Construction:
  Made from durable 9.5mm acrylic that lets you clearly see the body beneath for perfect positioning.
• Laser-Cut Accuracy:
  CNC-machined with smooth, precise edges that allow router bearings to glide effortlessly.
• Laser-Etched Guidelines:
  Features centerlines and depth indicators for flawless alignment and repeatable results.
• Countersunk Mounting Holes:
  Anchor the templates securely to your workpiece—no shifting, no mistakes.
• Compatible with Most Routers:
  Works with standard routers and bearing-guided bits (not included).

Template Dimensions

• Front Cavity (Bridge Plate):
  147.5 × 97.5 × 9.5 mm (5-13/16" × 3-27/32" × 3/8")
• Rear Cavity (Spring Compartment):
  228.5 × 143 × 9.5 mm (9" × 5-5/8" × 3/8")

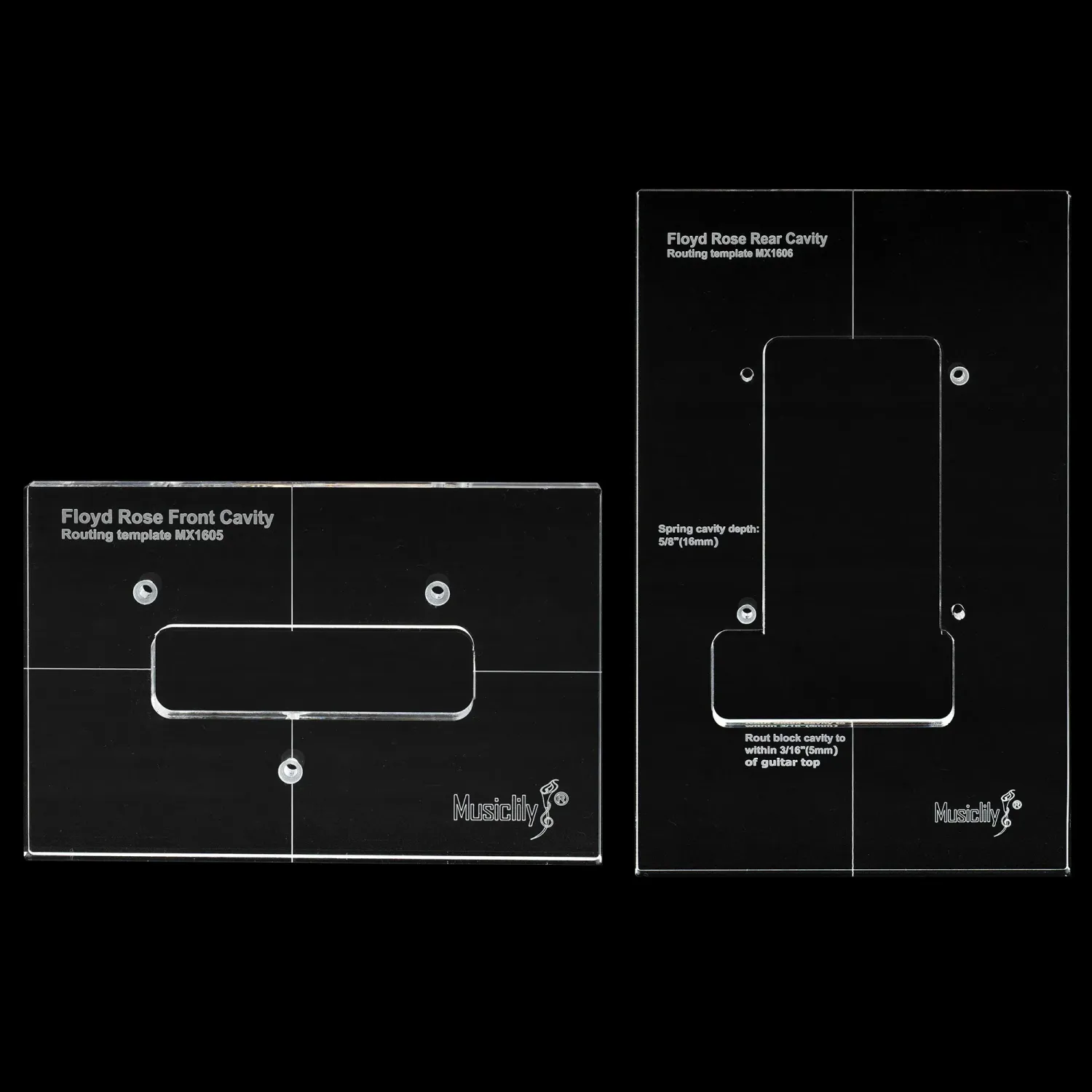

What's Included

• (1) Front Tremolo Bridge Routing Template
• (1) Rear Spring Cavity Routing Template

Helpful Tip

New to routing Floyd Rose systems? Search “how to use a Floyd Rose guitar routing template” on YouTube for helpful videos. Pair with your preferred router bits and tools to get professional-grade results.

📐 Cut Clean. Route Smart. Build Like a PRO.
Get the job done right with this premium-quality routing template set—perfect for guitar techs, builders, and custom shop enthusiasts.
