Carparelli 5A Emerson Pre-Wired Les Paul Harness
SKU CPPWEM
C$189
In stock
1
Product Details

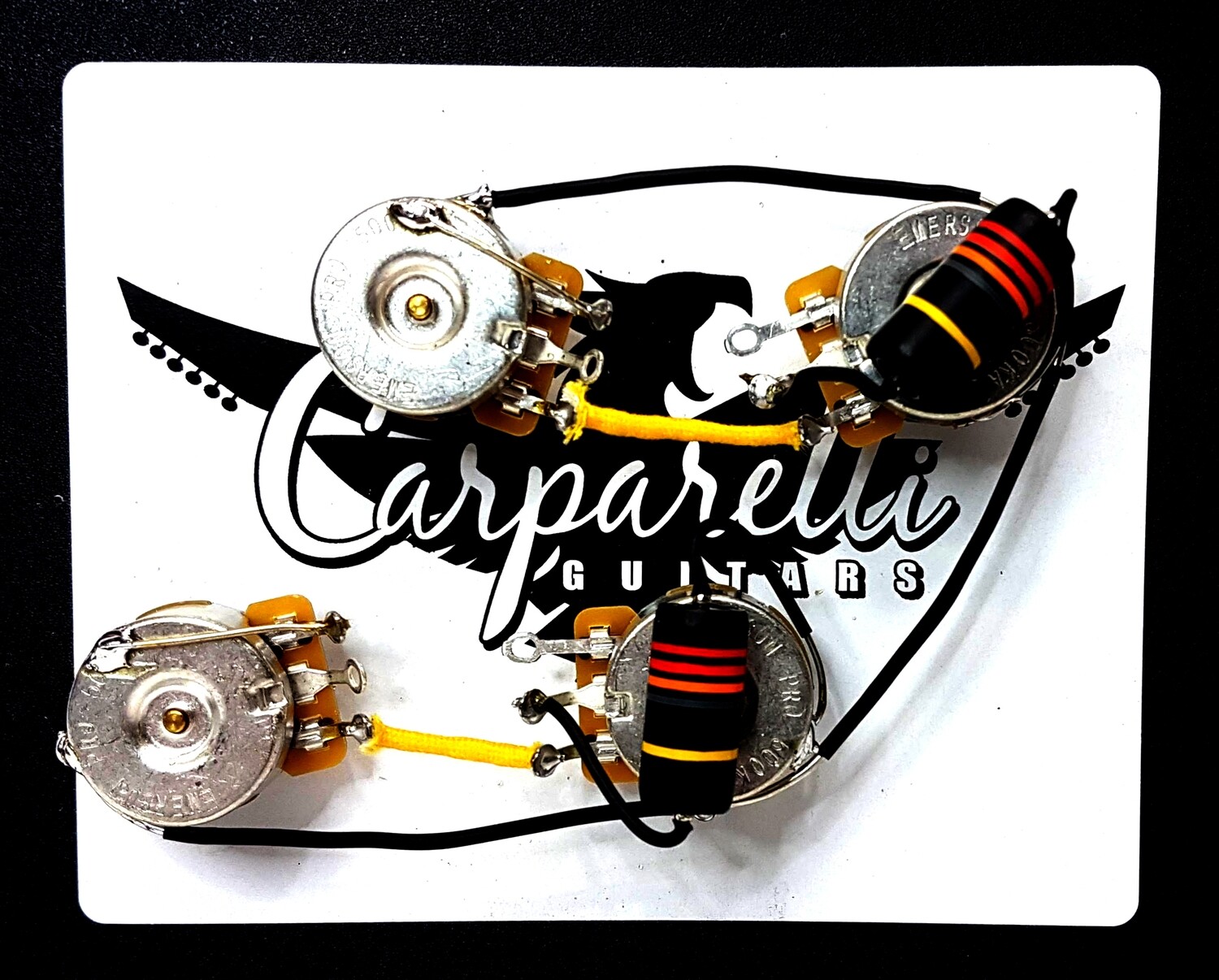

5A Pre-Wired EMERSON CUSTOM For Les Paul
From a Guitar-Tech standpoint Carparelli Guitars felt the need to create our own homegrown Pre-Wired Kits for the Guitar/Bass World.
All the Carparelli Pre-Wired Harnesses are professionally hand soldered right here in our Canadian Shop. Each Kit is templated for a smooth drop-in retrofit.
We believe at this point we are the first for using the PURETONE multi contact jack.
4 x EMERSON PRO CTS - 500K LONG (3/4") SPLIT SHAFT POTENTIOMETER
2 x Emerson Classic Paper in Oil Tone Capacitor EMERSON 0.022uf 300v - (Yellow & Cream Graphics) or 2 x Emerson Bumblebee Paper in Oil 0.022uf 300v
1 x Switchcraft 3 Way Short Toggle Switch
1 x Puretone Multi Contact Jack
5 x Extra Hex 3/8 32 thread count Nuts
1 x Aerospace grade bridge ground wire
16g Bus Wire ( Ground )
Gavitt Pre Tinned push cloth vintage style wire
Before the kit leaves the door, they are all TESTED and 100% Guaranteed. We will refund you 100% if you are not completely satisfied with your harness kit.
We really want you to have a stress free enjoyable experience so you can start rockin out!
Switchcraft Toggle Switch Specs
Body cavity depth 1-1/2" (38.10mm)
Mounting hole diameter 1/2" (12.70mm)
Thread height 7/32" (5.56mm)
CTS Control Pot Specs
Resistance 500K-ohm
Shaft diameter 0.235" (5.95mm)
split shaft, fine knurling
Thread 3/8" x 32
Threaded portion 3/8" (9.52mm)
Threaded portion, long shaft 3/4" (19.05mm)
Required mounting hole diameter 3/8" (9.52mm)
Value .022uF Code 223K
PURETONE Multi Contact Output Jack Specs:
Accepts standard 1/4" plugs Mono
Mounting hole diameter 3/8" (9.52mm)
Thread 3/8 x 32
Threaded portion height 1/4" (6.35mm)
