Made for Left Handed Guitars

Carparelli Guitars pre-wired kits are made with pride. We aim to help improve your guitars overall tone.
You will hear the difference when you upgrade with a Carparelli PreWired Kit from your factory stock parts.
Play Love Live!


You can use this kit for the following guitar models:

Gibson ES335, Epiphone DOT, ES330, ES345, Casino, ES339. If you have any doubt or questions, send us a message, send us a photo. Some models have the jack way at the bottom and not on the top of the body, let us know and we will make your kit with a longer jack wire so it will reach without any issues.
We will gladly tailor or adjust the kit to match your exact requirements. Just an email away.

Sheraton models: have a smaller f hole opening and will not allow a full size pot to feed thru. We can make yours with CTS mini pot. Just let us know.

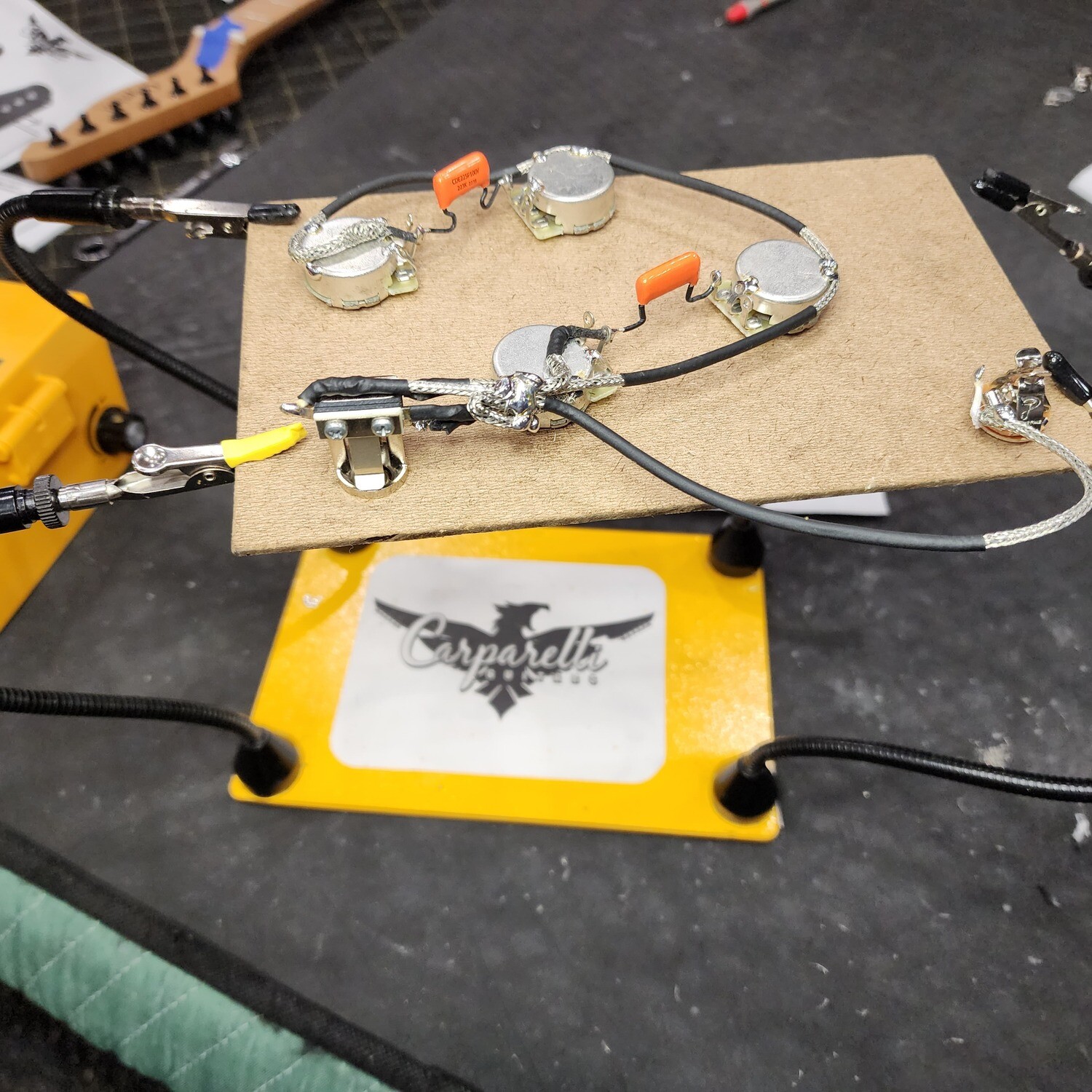

Kit Contents:

• Carparelli Karat (Gold Plated Sweeps) 500K audio taper 3/8 (18mm) Length shaft pots Brass bushings 10% tolerance, 2 nuts and dress washer. Coarse 18 teeth spline.
• Sprague Orange Drop 0.022uf bridge tone cap.
• Sprague Orange Drop 0.022uf neck tone cap.
• Switchcraft 3-Way Short Toggle Switch with black tip.
• hand wired- secure and insulated.
• Vintage Gavitt Braided cloth push back wiring all wrapped with high quality shrink
• PureTone Multi contact ¼ inch Output Jack ( THE BEST! )
• installation instructions with a 50's wiring diagram PDF file
• Every kit gets tested using our Template Guitar. It gets plugged in and we test for everything making sure it works 100% before it's shipped out to you.

Wiring harness is fed thru the f holes and requires opening in the widest part of the f hole no less than 1 - 1/8 inch to be able to feed the harness into the hollow body.

Template component measurements center to center:
Volume to Volume 2.5" Switch to Neck Volume 2"
Tone to Tone 2.5" Switch to Jack 6.5"
Volume to Tone 2.5"

**If you are not sure whether your guitar uses short (3/8") or long (3/4") shaft pots please check before ordering. Normally Pre-1977 Gibson Les Paul's, All Epiphone's, SG's, ES series use short shafts. This kit comes with Short Shaft. Visit our other store products to see our Long Shaft Pot harness's. If you have questions feel free to email me.

Note: If you have an imported guitar ( Asia ) such as Epiphone you may need to modify the potentiometer holes to 3/8 inch to accommodate the Carparelli Karat bushings. There is a PERFECT tool to do this with great ease. Email me and I'll send you info.

Lastly: You will be required to do some soldering to connect the pickups. If you are not comfortable doing this yourself, please use a qualified Guitar Tech to help you complete the install.

If you have any other questions please don't hesitate to address the here via the Message window. Check my Feedback status and I'm sure you will see/read that Carparelli Guitars is in this for the long haul. We aim to make sure you are a satisfied and REPEAT customer/friend.
