PRO CNC Acrylic Routing Template Set – Floyd Rose Recessed Tremolo Mod

Looking to unlock ultimate whammy performance? This PRO CNC Acrylic Routing Template Set is built specifically for recessed Floyd Rose tremolo installations, giving you more arm travel, a sleeker bridge fit, and a pro-level mod with precision and ease.

Why Go Recessed?

Recessing your Floyd Rose bridge allows:

• Extra clearance for extreme pitch changes
• Lower bridge height without neck shims
• Improved playability and a cleaner, more ergonomic setup

Key Features

• Built for Floyd Rose® Systems:
  Designed for tremolo bridges with 74.61mm (2-15/16") mounting stud spacing—ideal for recessed mounting mods.
• CNC-Machined Crystal Clear Acrylic:
  Provides full visibility of your workpiece, with smooth, router-friendly edges for clean cuts.
• Laser-Etched Centerlines & Depth Markings:
  No more guesswork—just precise, repeatable alignment.
• Includes Shims for Routing Depth:
  Shims allow accurate control over your recess depth for a factory-quality result.
• Secure & Repeatable:
  Countersunk mounting holes for screw-down anchoring—no slips, no surprises.
• Compatible with Standard Routing Tools:
  Works with common routers and bearing-guided bits (sold separately).

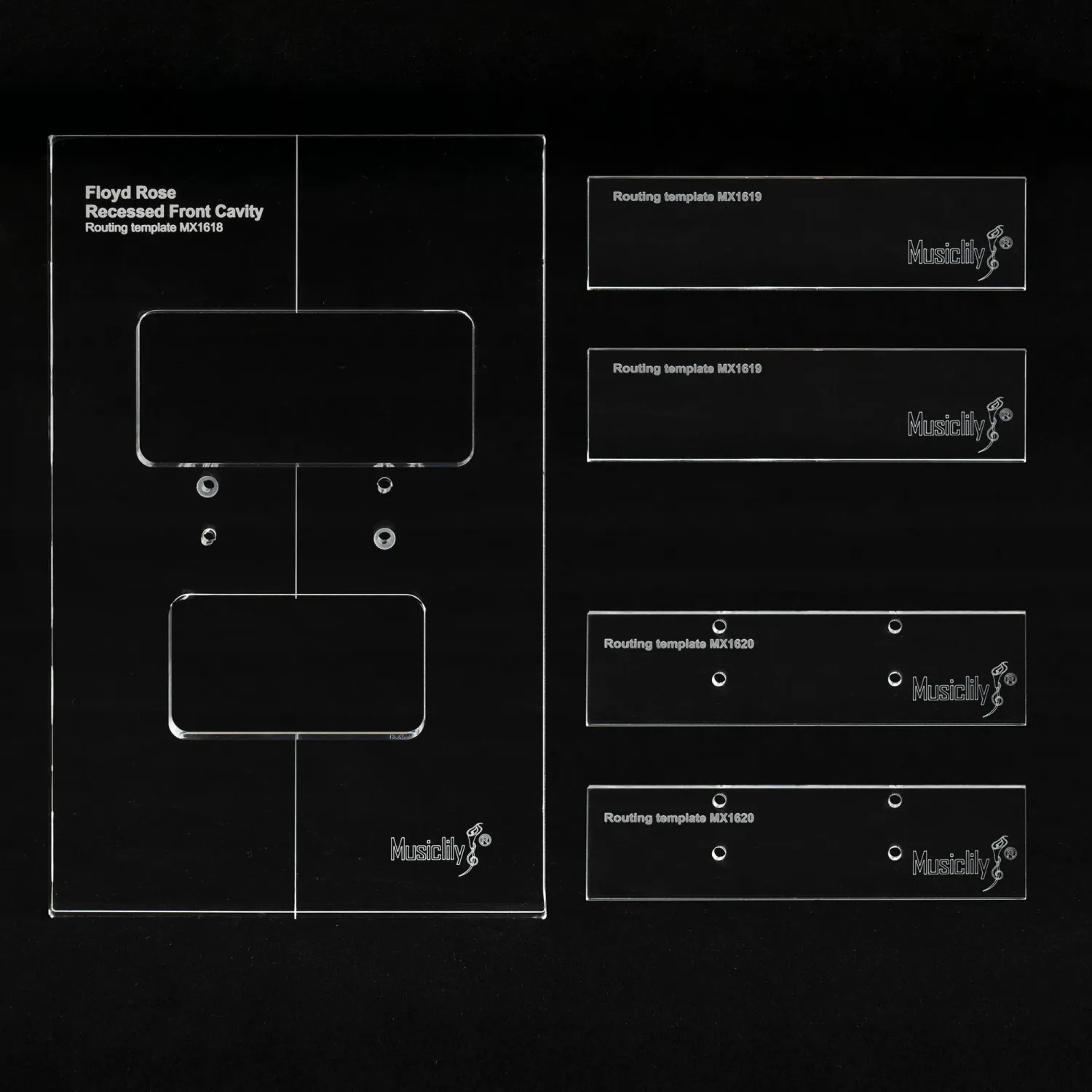

Template + Shim Dimensions

• Routing Template (Front Cavity):
  228.5 × 143 × 9.5 mm (9" × 5-5/8" × 3/8")
• Included Shims:
  126.5 × 32.5 × 4.8 mm (4-63/64" × 1-9/32" × 3/16")

What’s Included

• (1) Recessed Tremolo Routing Template
• (Shims Included for depth control)

Builder’s Tip

Not sure how to recess a Floyd Rose? Check YouTube for “how to install a recessed Floyd Rose tremolo” or “guitar tremolo routing template tutorial.” Just add your router and bit to get started.

🛠️ Push the Limits. Recess with PRO Precision.
This routing template set gives you everything you need to cleanly recess your Floyd Rose bridge—perfect for custom builds, upgrades, and serious whammy players.
